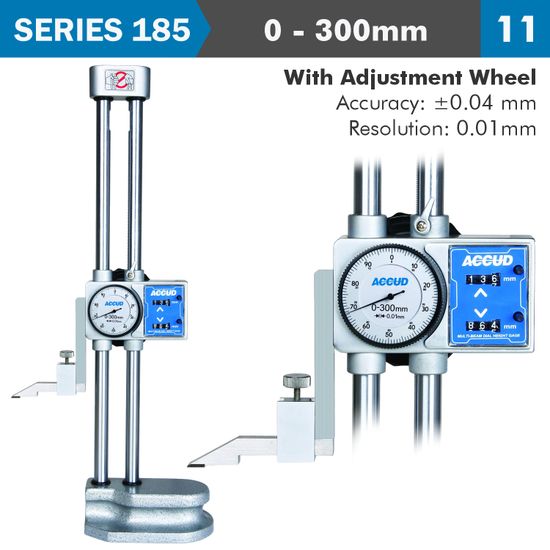

DIG. HEIGHT GAUGE 300MM 0.04MM ACC. DRIVING WHEEL 0.01MM GRAD. S/STEEL
- Stock: In Stock
- Brand: ACCUD
- Model: AC185-012-11
- Weight: 4.76kg
- Dimensions: 234.00mm x 524.00mm x 524.00mm
- SKU: AC185-012-11
- UPC: 6009515859749
R 9,477.44
Ex Tax: R 8,241.25
Two-column Dial Height Gauge 300 mm
SERIES 185-11
SERIES 185-11
Manufacturer Cat No: 185-012-11
Two-column Analogue Height Gauge
Two-column sensor height gauge with a dial gauge, measuring range 0-300 mm and graduation 0.01 mm, equipped with a tracer tip and a guide with a knob to facilitate adjustment.
The readout from both the sensor and the meter attached next to it is easy and error-free. The columns are made of stainless steel. Measuring tip - made of sintered carbide.
Adjustment is made by turning a guide knob on the back of the unit which also acts as the fine adjuster.
Made of stainless steel (except the base). Measuring tip - made of sintered carbide.
Made of stainless steel.
Features at a glance
Technical parameters:
| Description | Spec |
| Measurement range: |
0-300 mm |
| Scale: | 0.01 mm |
| Counter: | one counter to measure on + and one to measure on - |
| Accuracy: | ± 0.04 mm |
| Dimension b1: | 135 mm |
| Dimension b2: | 43 mm |
| Dimension c: | 33 mm |
| Dimension d: | Ø 15 mm |
| Dimension h: | 84 mm |
| Dimension L: | 475 mm |
| Tracing tip: | YES |
