- Stock: In Stock
- Brand: TORK CRAFT
- Model: TCGR150-1
- Weight: 0.92kg
- Dimensions: 155.00mm x 155.00mm x 30.00mm
- SKU: TCGR150-1
- UPC: 6009515816162

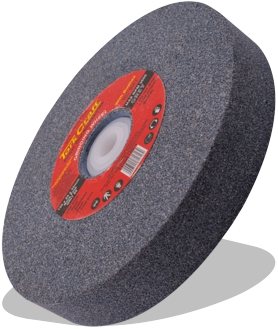

For use with bench grinders to grind steel
DIAMETER: ø150mm
WIDTH: 25mm
BORE: Ø32mm
GRIT: 60
ABRASIVE: Aluminium oxide
MAX RPM: 3600
Application:
High-quality aluminium oxide abrasives
bonded and precision-engineered to maximize cut rate, wheel life and finish
on steel, stainless steel and cast iron.
Used for offhand grinding steel, stainless steel and cast iron.
Grinding wheel supplied with bushes to accommodate other bench grinder shaft diameters.
Grinding wheel stone grit
Grinding stone wheels are usually available in various grades, which refers to the grit size of the particles in the stone. Generally, the finer the grit, the denser the material, which leads to a finer finish of the surface of the tool. Finer grits cut more slowly because they remove less material. Grits are often given as a number, which indicates the density of the particles with a higher number denoting higher density and therefore smaller particles.
Grinding Stones
The stones also are made of different abrasives:
- Aluminium oxide - most commonly found on bench grinders.
- Silicon carbide - mostly used for work on stone material.
- Zirconia aluminia - used for more aggressive grinding needs.
The grinding wheels are also available in different diameters to correspond to different machine sizes. Please note the maximum rotation speed of each disc before use!
A bench grinder is a machine that is attached to a bench. It usually has two grinding wheels, both of them normally of different grits. For example a 60 grit and a 36 grit. One for stock removal and the other made for touching up tools.Although a bench grinder is generally a shop tool, there are some designed for home use. These machines are not normally used for precision grinding. The outcome is usually coarse, even with a wheel considered for fine grinding. Further grinding may be necessary with a different type of grinding machine.
Bench grinding wheels are mostly made of aluminium oxide that consistently renews itself when in use. It also has a reduced chance of overheating and clogs less frequently. The disadvantage is that these wheels may need to be replaced more often.
Differences between machines: Some bench grinders are smoother and quieter running than others. Some machines might have adjustable speed to prevent overheating. The tool rests might also vary from having a V-grooved to an angled toolrest to allow the grinding of drill bits etc.
