DIG. HEIGHT GAUGE 300MM 0.04MM ACC. DRIVING WHEEL 0.01MM RES. S/STEEL

DIG. HEIGHT GAUGE 300MM 0.04MM ACC. DRIVING WHEEL 0.01MM RES. S/STEEL
Out Of Stock
DIG. HEIGHT GAUGE 300MM 0.04MM ACC. DRIVING WHEEL 0.01MM RES. S/STEEL
  • Stock: Out Of Stock
  • Brand: ACCUD
  • Model: AC182-012-11
  • Weight: 4.85kg
  • Dimensions: 528.00mm x 230.00mm x 155.00mm
  • SKU: AC182-012-11
  • UPC: 6009515892562
Recommended Price
R 17,461.03
Ex Tax: R 15,183.50

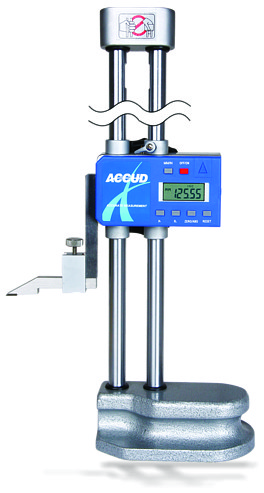

Two-column Digital Height Gauge 300 mm
SERIES 182-11

Manufacturer Cat No: 182-012-11

Digital Height Gauge with Data Output

Workshop electronic/digital two-column height gauge by ACCUD, measuring range 0-300mm | 12' and resolution 0.01mm | 0.0005'.

The height gauge is equipped with ABS absolute measurement function, i.e. the ability to measure against the set zero value.

Adjustment is made by turning a guide knob on the back of the unit which also acts as the fine adjuster.

Made of stainless steel (except the base). Measuring tip - made of sintered carbide. Equipped with a data output port.

Made of stainless steel.

Features at a glance

  • Made of stainless steel (except the base)
  • Resolution: 0.01mm/0.0005'
  • Buttons: on/off, inch/mm, ABS/INC, data preset, set data
  • With driving wheel
  • USB data output
  • Optional accessory: 267 series clamps (not included)
  • Carbide tipped scriber
  • Functions: inch/mm, ABS/INC, data hold, tolerance set, data preset



Technical parameters:

Description Spec
Measurement range:
0-300mm / 12 in
Resolution: 0.01 mm / 0.0005 '
Accuracy: +/- 0.04 mm
Mm / inch switch: YES
ABS / INC function: YES
On / Off / Zero button: YES
Travel lock: YES
Fine adjuster: YES
HOLD function (hold result): YES
Data output socket: YES
Dimension a1: 135 mm
Dimension a2 : 43 mm
Dimension c : 33 mm
Dimension Ød 15 mm
Dimension h : 84 mm
Dimension L: 475 mm
Construction: stainless steel tracer tip - carbide
