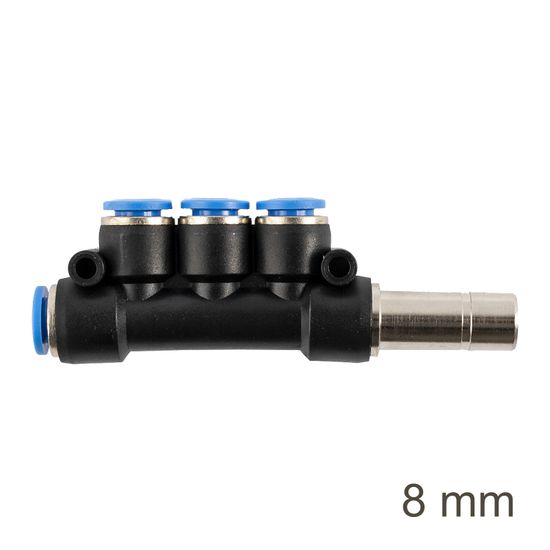

Insert Manifold Side 4-port Pu 8mm

Features

• Four push-in ports Connect up to four 8mm pneumatic tube lines quickly.
• Side insert style Helps keep the manifold compact and simplifies routing in tight spaces.
• One-touch tube connections Fast fitment and easier maintenance without special tools.
• Clean distribution layout Reduces the need for multiple tees and adapters.

Benefits

• Neater installations: Creates a single distribution point to reduce clutter and simplify plumbing.
• Faster setup: Push-in ports make tubing runs quick and clean.
• Easy maintenance: Disconnect and reroute lines with less downtime.

Extra Information

• Designed for 8mm outside diameter pneumatic tubing (commonly PU/nylon air line).
• Ideal for compact pneumatic circuits, automation, packaging, and air-assisted applications.
• For best sealing, ensure tubing is cut square and fully inserted before pressurising.

Specifications

Safety

• Always isolate and depressurise the air system before installing or removing pneumatic fittings.
• Wear eye protection when working with compressed air lines and pressurised components.
• After installation, check for leaks using soapy water or an approved leak-detection method.
• Do not use damaged tubing or fittings, and never exceed the pressure ratings of your pneumatic system components.
