SAFETY QUICK COUPLER 1/2 M TWO STAGE RELEASE

Stock: In Stock
Brand: GAV
Model: GAV AB-3
Weight: 0.14kg
Dimensions: 80.00mm x 30.00mm x 30.00mm
SKU: GAV AB-3
UPC: 6009515874056

Based on 0 reviews. - Write a review

R 652.97

Ex Tax: R 567.80

Qty

Add to Cart

Ask Question

Add to Wish List Compare this Product

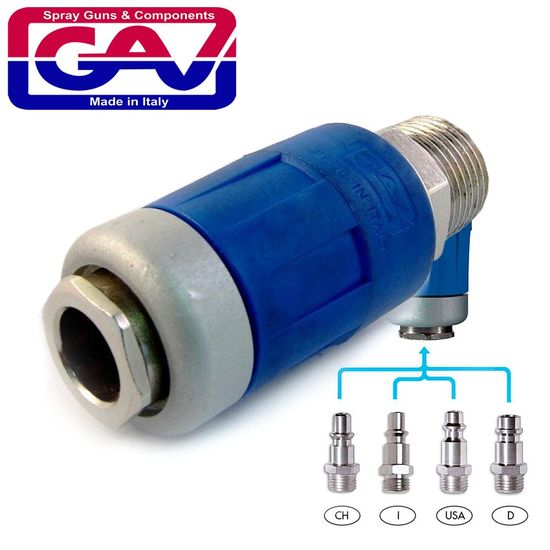

Airblock Safety Quick Coupler

Airblock is designed to first shut off the air and then open to release the coupler connection.
A true safety feature
Excellent airflow characteristics
Universal type coupling
Patented design

Made in Italy

¹/₂ inch male BSP thread


The air flow freely through the coupler	Push release backwards. The flow of air is cut and the pressure is vented.	The coupler is released from the connection

The British Standard Pipe (BSP) is a family of standard screw thread types that has been adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread and has been adopted as a standard scale used in plumbing fittings.

More information on BSP Thread sizing

BSP = British Standard Pipe measured in inches

Nom size	Dash size	TPI Threads Per Inch	Thread pitch		Major diameter		Minor diameter		Gauge length
(in)	(in)	(in⁻¹)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
¹⁄₈	−2	28	0.907	0.0357	9.728	0.383	8.565	0.3372	4±0.9
¹⁄₄	−4	19	1.337	0.0526	13.157	0.518	11.445	0.4506	6±1.3
³⁄₈	−6	19	1.337	0.0526	16.662	0.656	14.950	0.5886	6.4±1.3
¹⁄₂	−8	14	1.814	0.0714	20.955	0.825	18.633	0.7336	8.2±1.8
³⁄₄	−12	14	1.814	0.0714	26.441	1.041	24.120	0.9496	9.5±1.8
1	−16	11	2.309	0.0909	33.249	1.309	30.292	1.1926	10.4±2.3

Airblock Safety Quick Coupler

Truly universal - It accepts all types of standards


The air flow freely through the coupler	Push release backwards. The flow of air is cut and the pressure is vented.	The coupler is released from the connection
