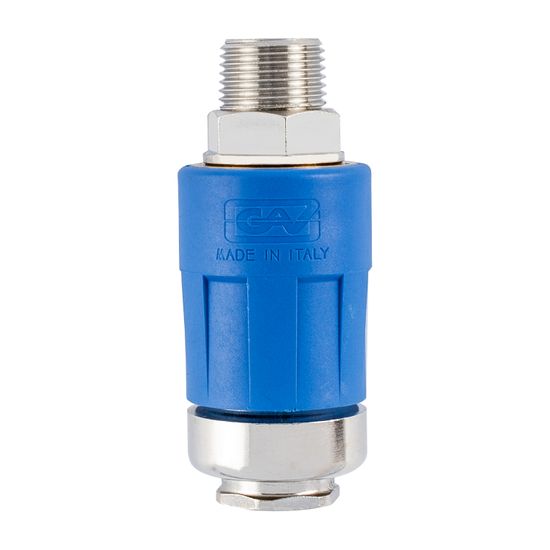

SAFETY QUICK COUPLER 3/8 M TWO STAGE RELEASE

SAFETY QUICK COUPLER 3/8 M TWO STAGE RELEASE
SAFETY QUICK COUPLER 3/8 M TWO STAGE RELEASE
  • Stock: In Stock
  • Brand: GAV
  • Model: GAV AB-2
  • Weight: 0.12kg
  • Dimensions: 25.00mm x 25.00mm x 25.00mm
  • SKU: GAV AB-2
  • UPC: 6009515874049
R 566.55
Ex Tax: R 492.65

GAV pneumatic fittings from ItalyAirblock Safety Quick Coupler

Airblock - SAFETY QUICK COUPLER

  • Airblock is designed to first shut off the air and then open to release the coupler connection.
  • A true safety feature
  • Excellent airflow characteristics
  • Universal type coupling
  • Patented design

Made in Italy

3/8 inch male BSP thread



The air flow freely through the coupler Push release backwards. The flow of air is cut and the pressure is vented. The coupler is released from the connection

The British Standard Pipe (BSP) is a family of standard screw thread types that has been adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread and has been adopted as a standard scale used in plumbing fittings.

GAV pneumatic fittings from ItalyAirblock Safety Quick Coupler



GAV Airblock universal coupler

Truly universal - It accepts all types of standards

The air flow freely through the coupler Push release backwards. The flow of air is cut and the pressure is vented. The coupler is released from the connection

GAV pneumatic fittings from ItalyAirblock Safety Quick Coupler



GAV Airblock universal coupler

Truly universal - It accepts all types of standards



The air flow freely through the coupler Push release backwards. The flow of air is cut and the pressure is vented. The coupler is released from the connection

airblock flow diagram

  Cat No. L L1 D SW Thread
GAV AB-2 72 mm 11,5 mm 28 mm 19 mm 38 inch BSP

Airblock

* SW = Spanner size
* Thread refers to British Standard Pipe thread
